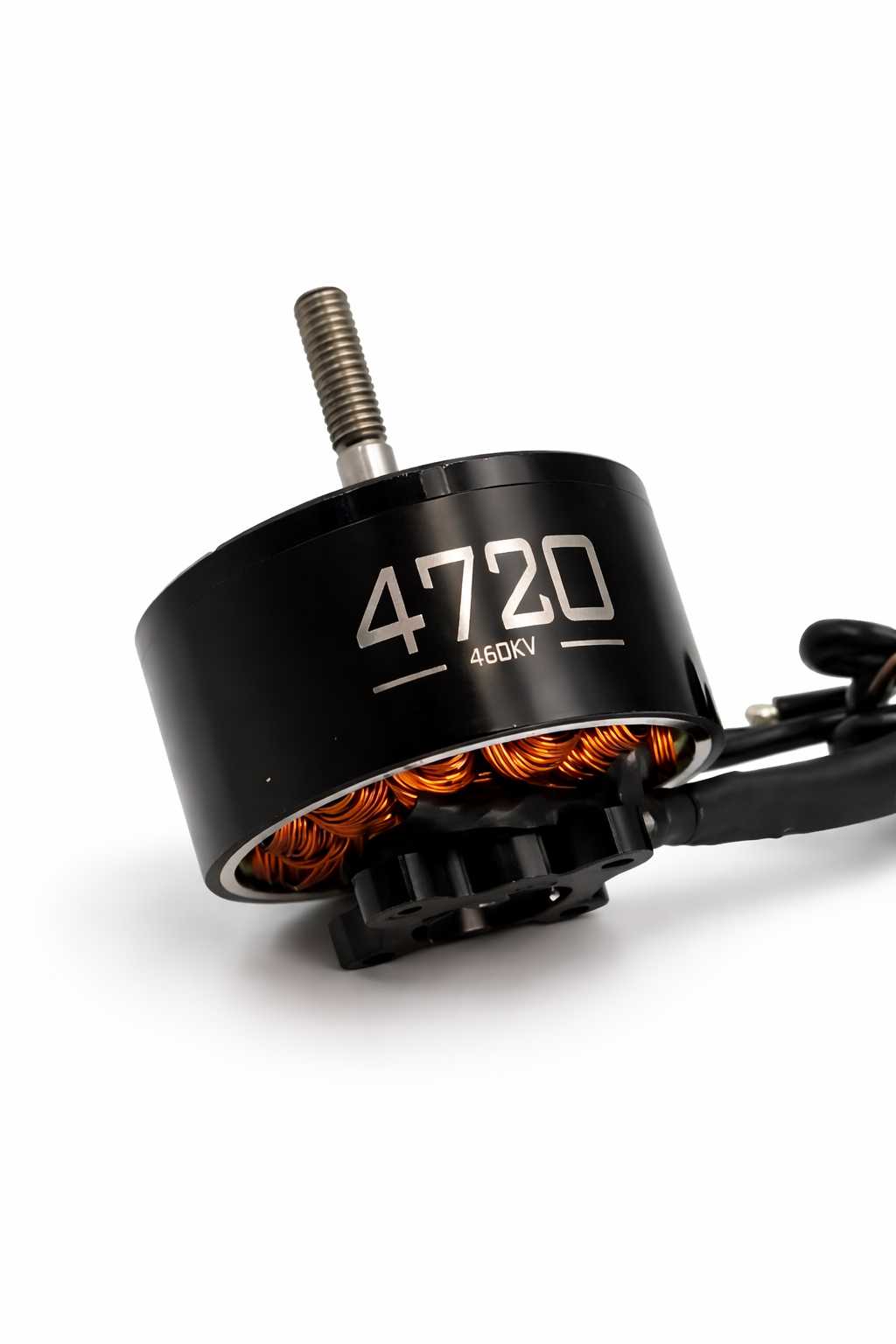

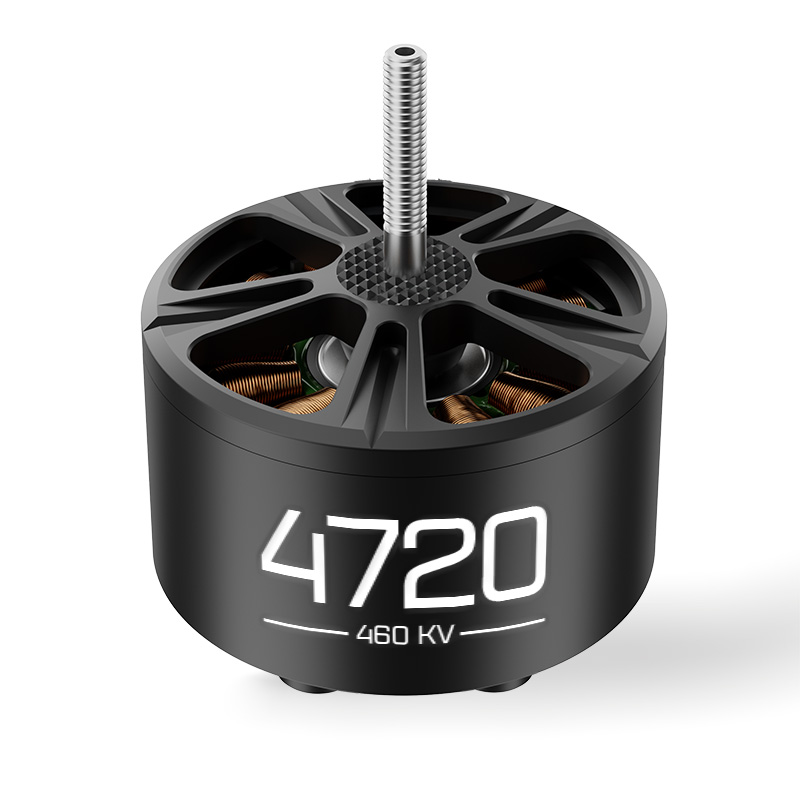

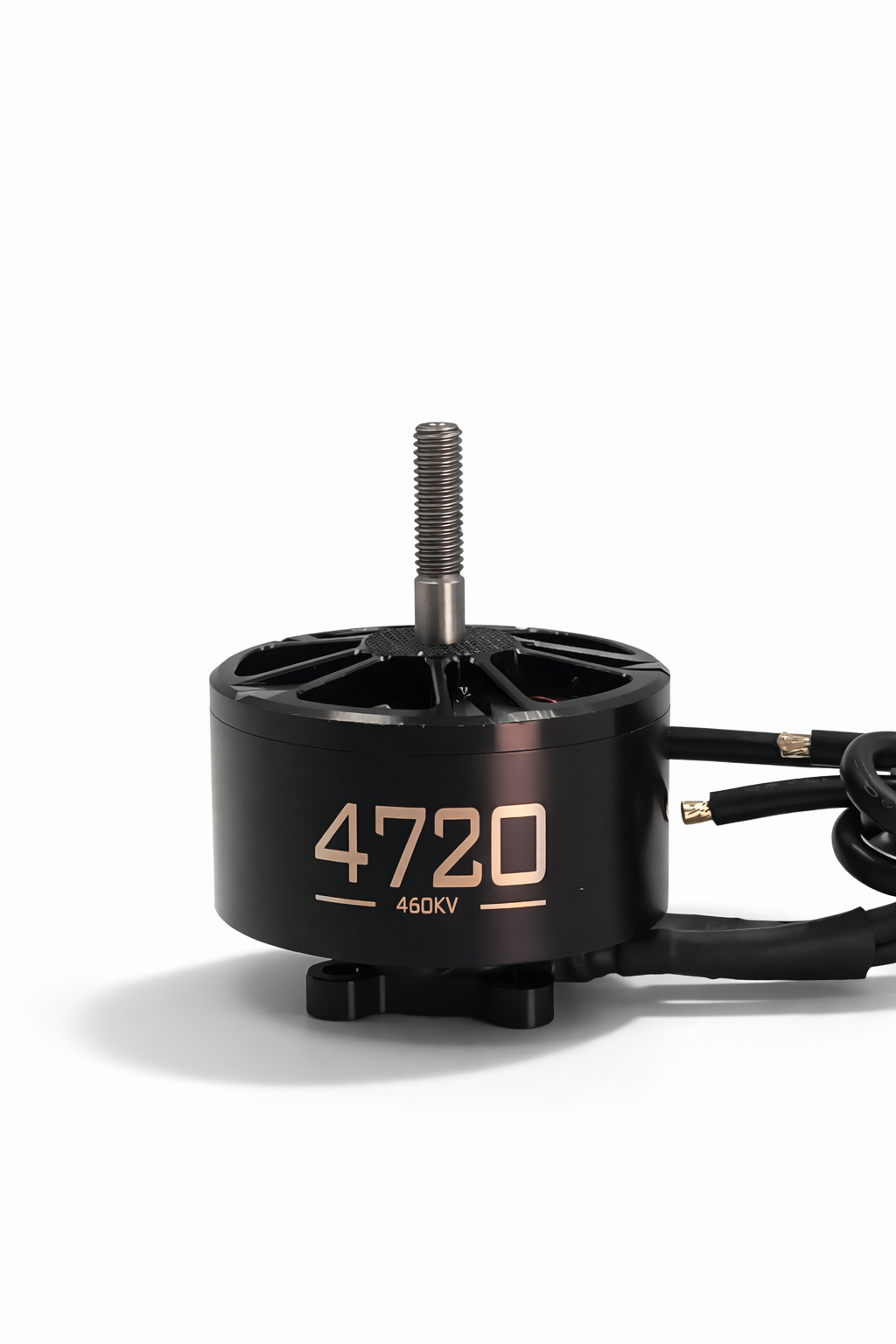

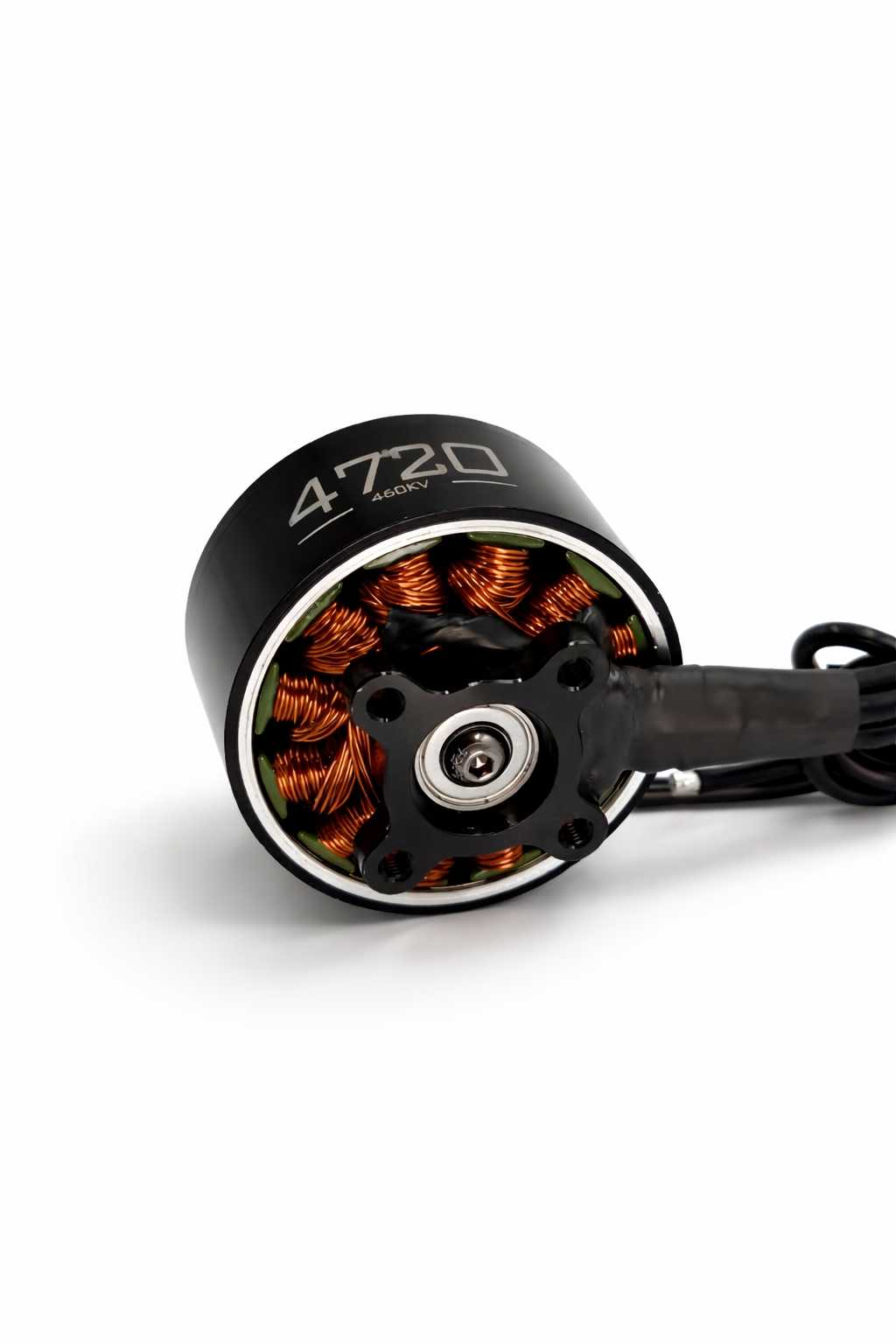

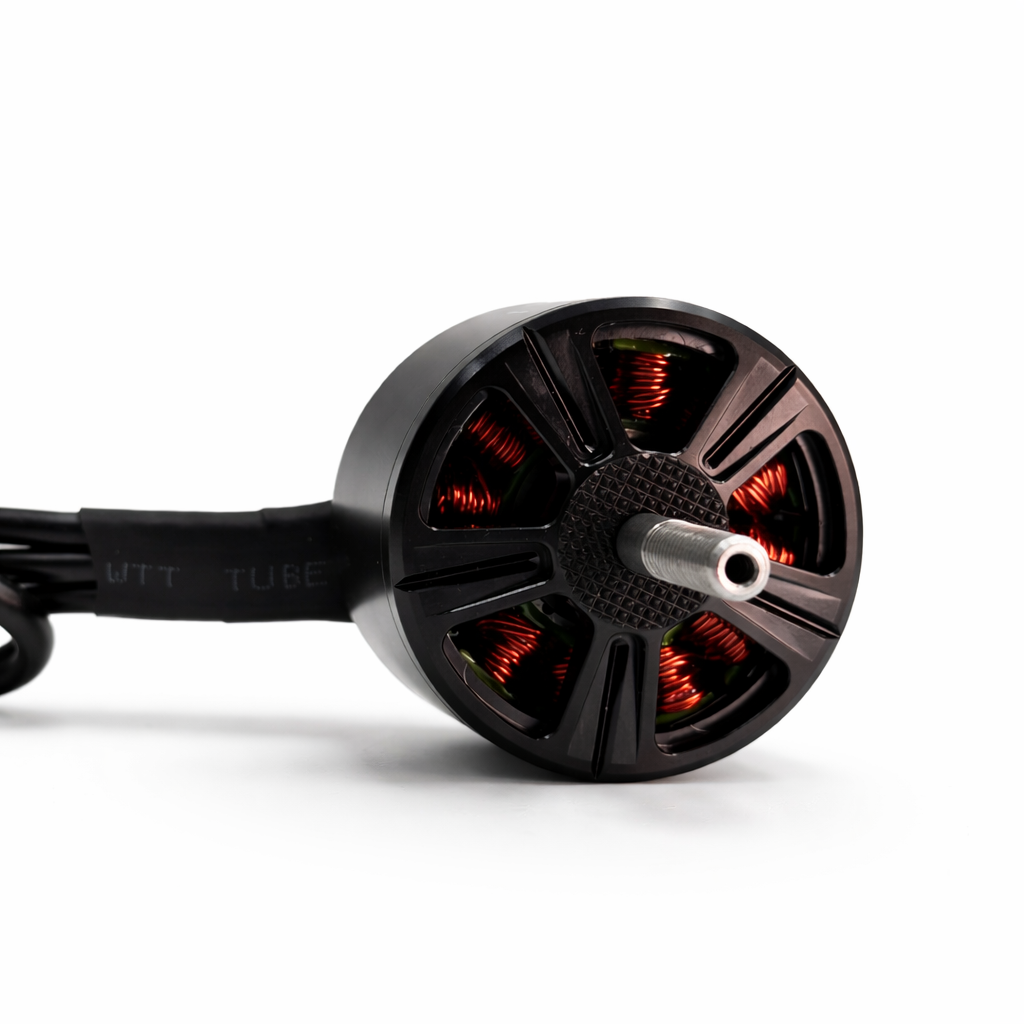

S4720 FPV Brushless Motor | High Torque 12N14P Long-Range Drone Motor
With a precision-balanced rotor, optimized copper windings, and a CNC-machined aluminum housing, the S4720 performs confidently with both 3-blade and 5-blade propellers, making it an excellent choice for long-range FPV, cinematic drones, and heavy-lift platforms.
Electrical & Performance Specifications :
| Parameter | Specification |
| KV Options | 430KV |
| Maximum Power | Up to 2076 W |
| Peak Thrust | Up to 5827 g (15-inch prop) |
| Maximum Efficiency | Up to 81% |
| Slot / Poles | 12N14P |
| Recommended Propellers | 3-blade / 5-blade |
| Operating Temperature | Stable under sustained high throttle |
Mechanical & Dimensional Specifications :
| Parameter | Specification |
| Stator Size | Ø47 × 20 mm |
| Motor Diameter | Ø54.2 ± 0.2 mm |
| Motor Length | 67.8 ± 0.5 mm |
| Main Body Length | 56.8 mm |
| Rear Mounting Diameter | Ø30 mm |
| Shaft Diameter | Ø6 mm |
| Shaft Thread | M6 |
| Shaft Front Extension | 25 mm |
| Effective Shaft Length | 18 mm |
| Mounting Pattern | 4 × M4 threaded holes |
| Weight | 384–385 g (with wire) |
Ideal Applications :
-
Long-range FPV drones
-
Cinematic FPV builds
-
Heavy-lift multirotors
- Professional aerial platforms requiring high thrust and efficiency
