COREROTOR SG2812-900KV

Name: COREROTOR SG2812-900KV -
Price: 24.99 USD
Availability: InStock

Original price was: $40.00.Current price is: $24.99.

& Free Shipping

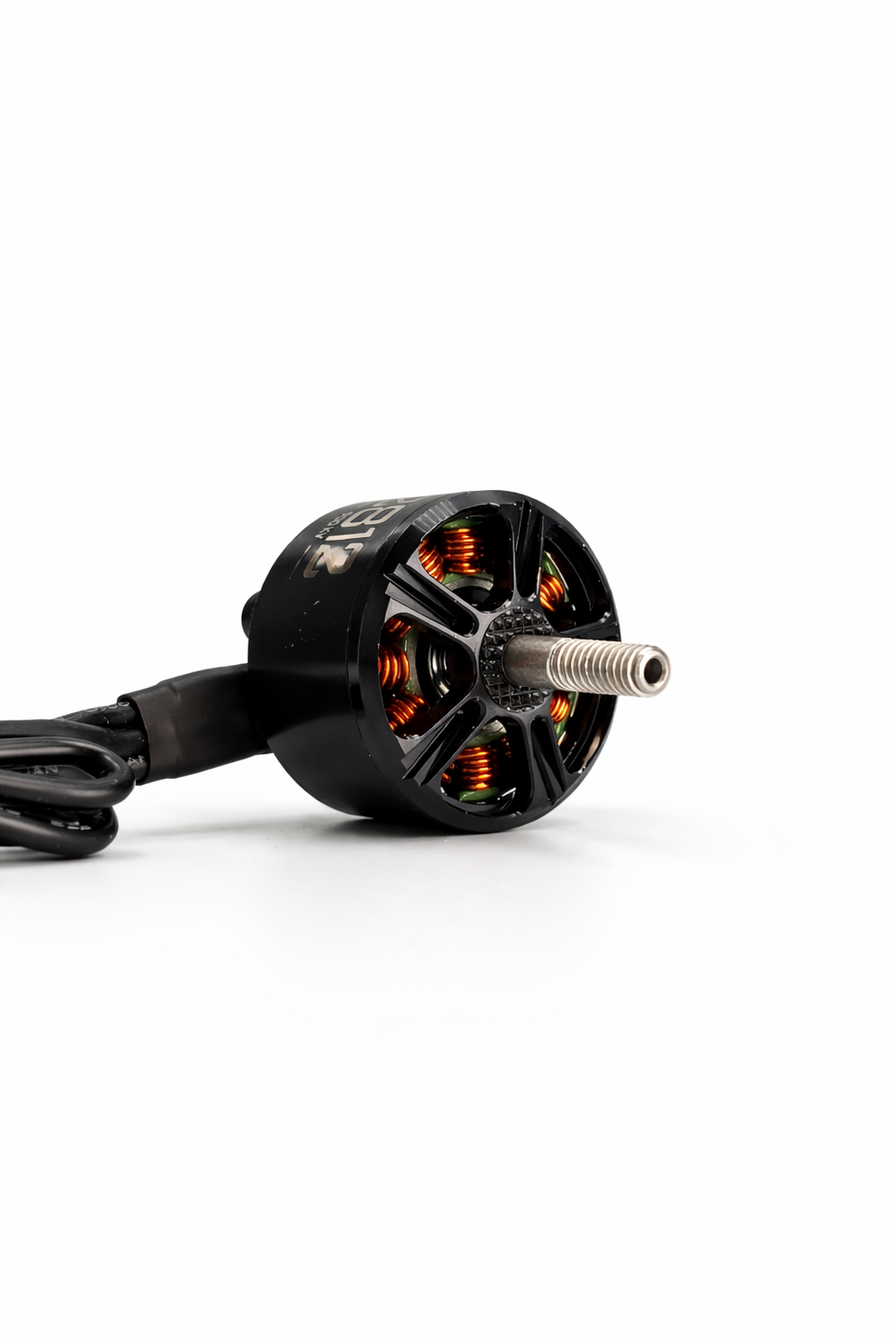

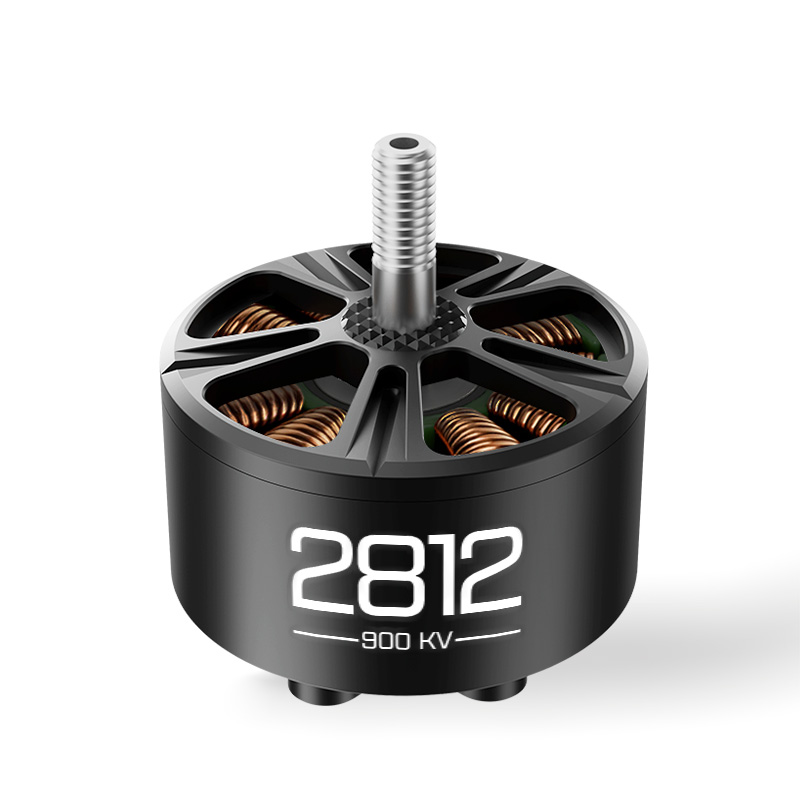

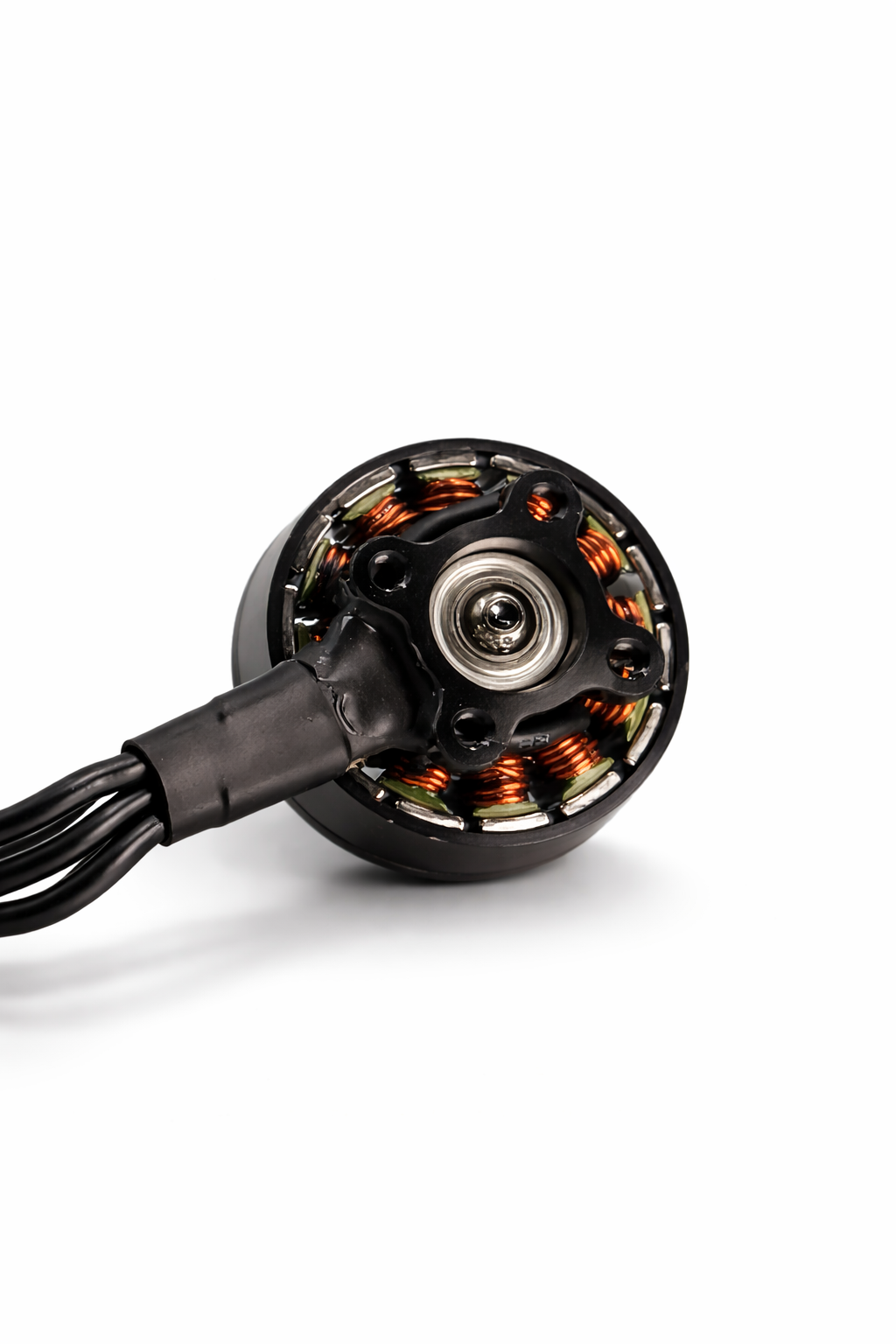

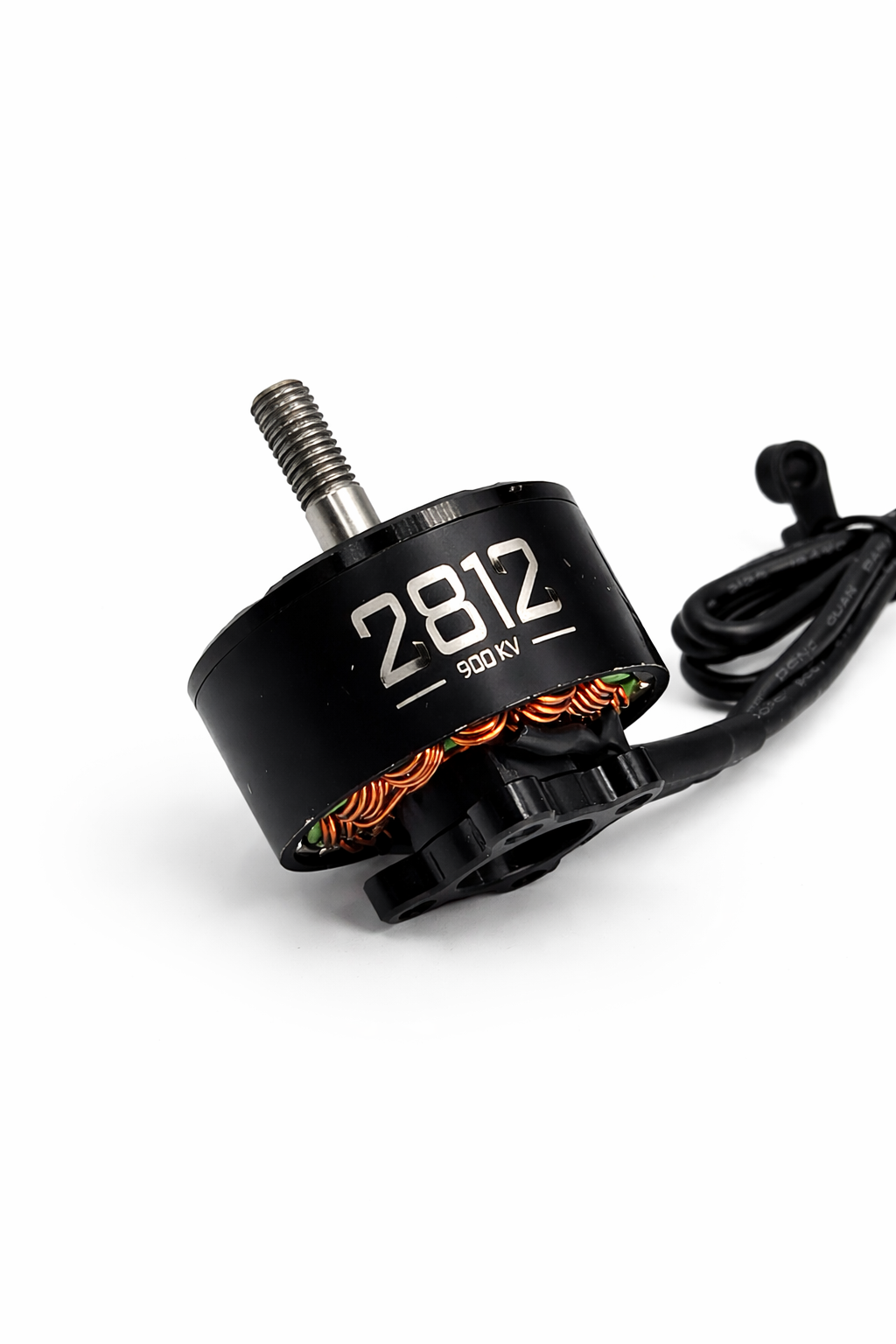

The COREROTOR SG2812-900KV FPV Brushless Motor is a high-efficiency drone motor designed for long-range FPV drones, quadcopters, and aerial photography platforms. Built with a precision 2812 stator and 900KV rating, it delivers smooth throttle response, powerful torque, and reliable performance for demanding UAV applications.

✔ High-performance 2812-900KV FPV brushless motor
✔ Up to 3176g thrust output
✔ Smooth and efficient 12N14P stator design
✔ Durable 5mm M5 shaft for strong prop mounting
✔ Ideal for FPV drones, long-range UAVs, and quadcopters

Category: Motors

Guaranteed Safe Checkout

Description
Reviews (0)

2812 900KV FPV Brushless Motor – High Efficiency Drone Motor for Long Endurance & Powerful Thrust

The 2812 900KV FPV Brushless Motor is a high-performance drone motor engineered for FPV drones, long-range quadcopters, and aerial photography platforms. Designed with high torque, efficient power delivery, and durable construction, this motor ensures smooth throttle response, stable flight performance, and excellent thrust output.

With a 900KV rating, optimized 12N14P stator configuration, and precision-machined components, the motor delivers up to 3176g thrust while maintaining excellent efficiency and thermal stability. Its 2812 stator size and 5mm shaft provide the perfect balance between power, durability, and reliability for demanding FPV applications.

Whether you are building a long-range drone, heavy-lift FPV quadcopter, or cinematic aerial platform, the 2812-900KV brushless motor delivers consistent performance and professional-grade reliability.

Key Features

High-performance 2812 FPV brushless motor
900KV rating optimized for efficiency and stable flight
Up to 3176g thrust output for powerful lift capability
High torque design for better propeller control
12N14P stator configuration for smooth power delivery
Durable 5mm shaft with M5 threading
Precision balanced rotor for low vibration
High efficiency up to 13.2 g/W
Optimized for 10–11 inch propellers
Ideal for FPV drones, long-range UAVs, aerial photography rigs

Motor Specifications :

Parameter

Specifications

Model	2812
KV Rating	900KV
Maximum Power	1205.1 W
Maximum Current	49.41 A
No Load Current	0.80 A
Internal Resistance	74.8 mΩ
Stator Configuration	12N14P

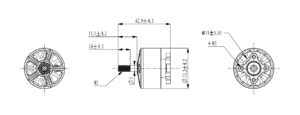

Motor Dimensions	Ø33.9 × 41.9 mm
Stator Size	Ø28 × 12 mm
Shaft Diameter	5 mm (M5)
Wire Size	18AWG / 200 mm
Weight (with wires)	77.2 g

Thrust Performance Data (2812-900KV with GF1050 Propeller) :

Throttle	RPM	Voltage	Current	Power	Torque	Thrust	Efficiency
50%	4352	25.02V	11.96A	299.2W	0.230 N.m	1384 g	13.2 g/W
60%	4919	24.93V	17.95A	447.5W	0.297 N.m	1818 g	11.9 g/W
70%	5405	24.80V	25.00A	620.0W	0.364 N.m	2213 g	10.7 g/W
80%	5799	24.65V	32.53A	801.9W	0.422 N.m	2571 g	10.0 g/W
90%	6148	24.52V	40.56A	994.5W	0.472 N.m	2893 g	9.5 g/W
100%	6379	24.39V	49.41A	1205.1W	0.523 N.m	3176 g	9.1 g/W

Applications

The 2812-900KV brushless drone motor is suitable for a wide range of UAV and FPV applications:

Long-range FPV drones
Aerial photography drones
Heavy-lift quadcopters
DIY UAV platforms
Professional FPV builds
Cinematic drone rigs

Why Choose the 2812-900KV FPV Motor?

The 2812-900KV drone motor combines high thrust output, excellent efficiency, and durable construction to deliver reliable performance for demanding drone pilots and builders. With optimized power consumption, smooth torque delivery, and precision engineering, it ensures stable flight characteristics even under heavy loads.

If you are looking for a reliable FPV brushless motor for long endurance flights and powerful lift, the 2812-900KV motor is an excellent choice for your drone build.
